The DMM Pinto 2 is a compact pulley built for climbing and rope systems where efficient movement and textile-friendly attachment points are important. The updated Pinto uses sealed ball bearings and a recessed 29 mm sheave to keep rope feeding smoothly from different angles. Full-strength attachment points at both the eye and becket allow a wide range of configurations, including direct textile connections. The red PUL131 version accepts rope up to 14 mm, carries a 35 kN main-body MBS and 25 kN becket MBS, and is certified to EN 12278:2007.

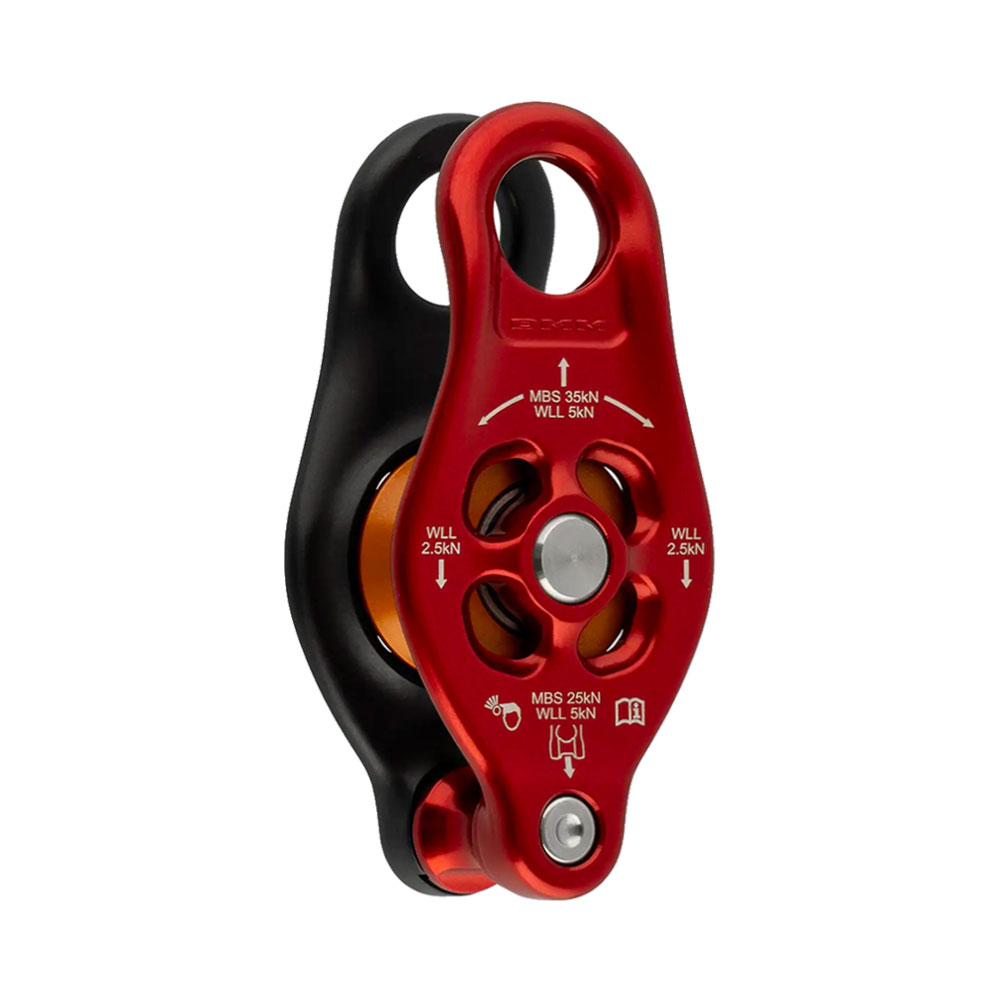

DMM Pinto 2 Pulley
Style # : PUL131
$89.99
The DMM Pinto 2 Red is a compact sealed-bearing pulley with textile-friendly attachment points and a recessed 29 mm sheave. It accepts rope up to 14 mm and carries a 5 kN working load limit.
Details
Specifications
• Color: Red
• Maximum rope diameter: 14 mm
• Sheave diameter: 29 mm
• Dimensions: 95 x 45 x 34 mm
• Weight: 117 g
• Main MBS: 35 kN
• Becket MBS: 25 kN
• Main WLL: 5 kN
• Becket WLL: 5 kN
• Bearings: Sealed ball bearings
• Certification: EN 12278:2007
