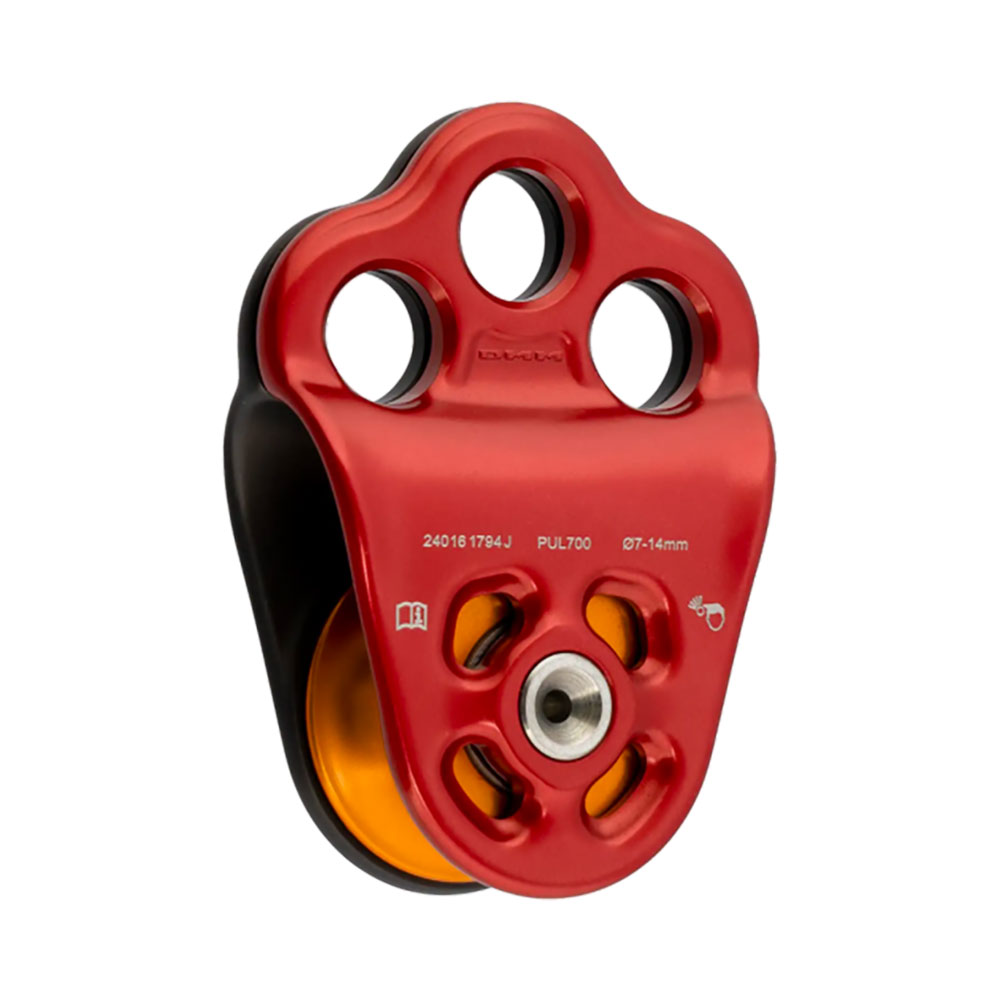

The red DMM Triple Attachment Pulley 2 is a certified pulley developed around the Hitch Climber System for tree care and work-at-height rope systems. Three attachment holes help organize connectors and allow off-center hanging, while the revised straight-sided body and larger U-shaped rope channel improve hitch tending and rope feed. DMM replaced the earlier bushing arrangement with sealed bearings for greater efficiency. The red PUL700RD is rated to a 30 kN minimum breaking strength and 6 kN working load limit, accepts rope up to 14 mm, and uses a 42 mm sheave. Rounded attachment holes can connect compatible textile components directly, and the pulley is certified to EN 12278:2007.
Triple Attachment Pulley 2
Style # : PUL700RD
$106.99
The red DMM Triple Attachment Pulley 2 uses three attachment holes and sealed bearings for efficient Hitch Climber and work-at-height rope systems. It is rated to 30 kN MBS, 6 kN WLL, and accepts rope up to 14 mm.
Details
- Bushings have been replaced with sealed bearings, offering improved efficiency
- Updated straight sides tend the hitch better
- Extra volume in U shape rather than V shape above sheave means rope feeds in more easily when used in hitch climber system
- Rigging plate helps organise single or multiple attachments
- Fairlead flares help maintain high working efficiency
- Compatible with most carabiner shapes and many textile connecting elements including rope and webbing
- Size of attachment holes reduce probability of unwanted rotation of locking carabiners
- Direct connection to textile components at the round edged attachment holes, helping to reduce system costs, increase lift height, minimise space required and enhance tolerance to torsion
- Side plate shape allows an autoblock knot to function when the rope approaches the sides as well as at the bottom of the pulley
- Tamperproof construction
Specifications
• Product type: Triple-attachment pulley • Classification: Climbing/work-at-height pulley • Product code: PUL700RD • Color: Red • MBS: 30 kN • WLL: 6 kN • Maximum rope diameter: 14 mm • Sheave diameter: 42 mm • Dimensions: 94 x 68 x 33 mm • Weight: 150 g • Bearing type: Sealed bearings • Certification: EN 12278:2007
