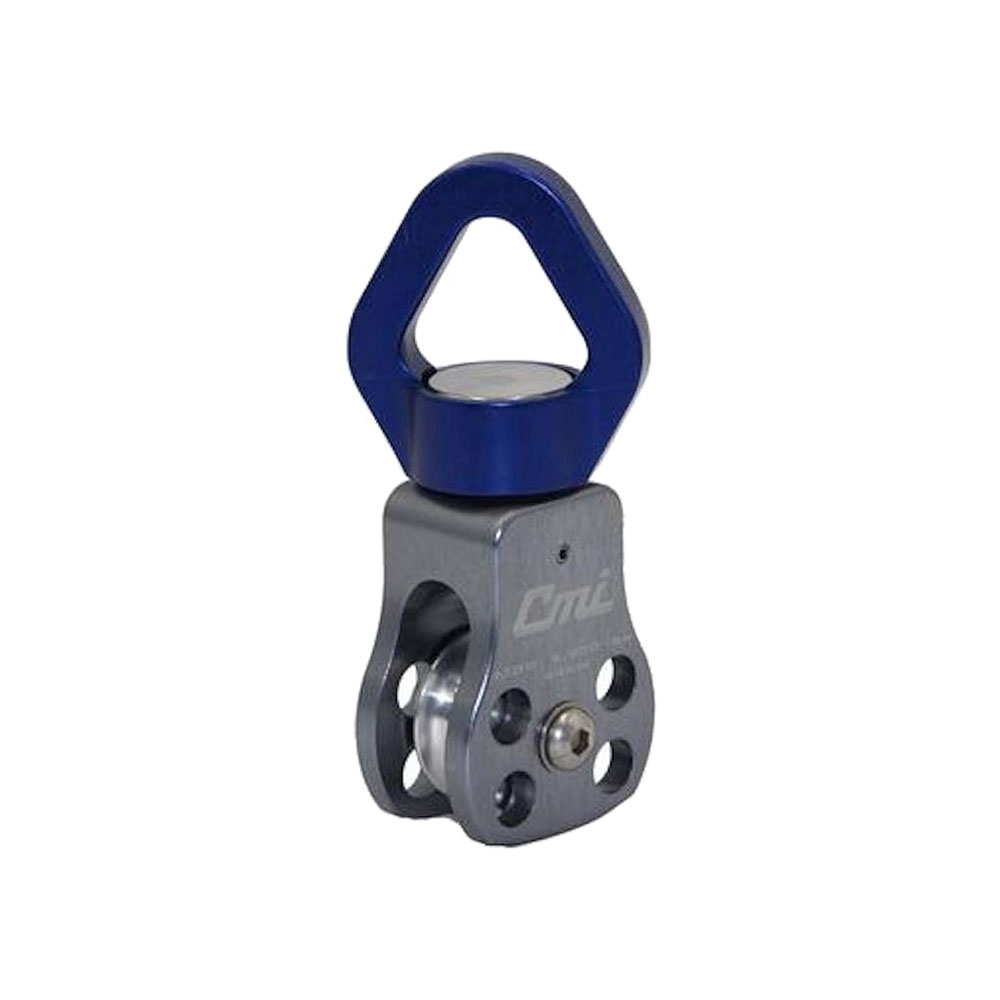

The CMI RP161 combines a compact pulley and swivel in a single unit to reduce hardware length and allow the pulley to align as the rope path changes. An anodized aluminum body surrounds a 1-1/4″ aluminum sheave running on a bushing, with a stainless steel non-removable axle. The integrated swivel can replace a separate pulley-and-swivel combination in compatible rope systems, saving vertical space and reducing connector count. RP161 accepts rope up to 1/2″ diameter and carries a published 9,900 lb. / 44 kN minimum breaking strength.
CMI Swivel Pulley
Style # : RP161
$119.45
The CMI RP161 combines a 1-1/4″ pulley and swivel in one compact rope-management component. It accepts rope up to 1/2″ and carries a 9,900 lb. / 44 kN MBS.
Details
Specifications
• Maximum rope diameter: 1/2″
• Minimum breaking strength: 9,900 lb. / 44 kN
• Sheave diameter: 1-1/4″
• Sheave material: Aluminum
• Side plates: Anodized aluminum
• Axle: Stainless steel, non-removable
• Sheave mechanism: Bushing
• Integrated component: Swivel
• Dimensions: 4.5″ x 2″
• Weight: 7.2 oz.
